Fuse/Relay Boxes 22A-35
Connector to Fuse/Relay Box Index

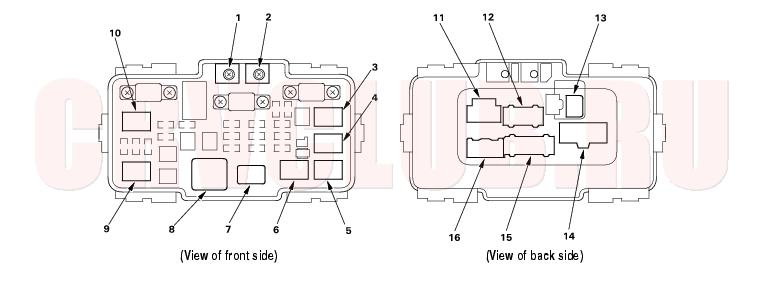

Under-hood Fuse/Relay Box
|
| A
|
11
|
2
|
Engine compartment wire harness
|
| A/C compressor clutch relay
|
6
|
4
|
|
| B
|
16
|
5
|
Engine compartment wire harness
|
| Blower motor relay
|
8
|
4
|
|
| C
|
12
|
12
|
Engine compartment wire harness
|
| Condenser fan relay
|
3
|
4
|
|
| D
|
15
|
14
|
Engine compartment wire harness
|
| E
|
14
|
7
|
Engine compartment wire harness
|
| ELD unit
|
13
|
3
|
Engine compartment wire harness
|
| Horn relay
|
4
|
4
|
|
| Headlight relay 1
|
9
|
4
|
|
| Headlight relay 2
|
10
|
4
|
|
| Radiator fan relay
|
5
|
4
|
|
| Rear window defogger relay
|
7
|
4
|
|
| T1 (Battery)
|
2
|
|
Starter sub-harness
|
| T101 (Alternator)
|
1
|
|
Starter sub-harness
|
Connector to Fuse/Relay Box Index (cont'd) 22A-36

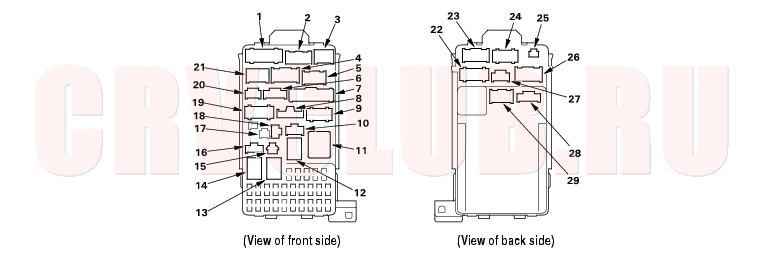

Under-dash Fuse/Relay Box
|
| A
|
2
|
5
|
Dashboard wire harness
|
| B
|
3
|
6
|
Dashboard wire harness
|
| C
|
1
|
14
|
Dashboard wire harness
|
| D
|
4
|
12
|
ECM/PCM wire harness
|
| E
|
5
|
13
|
ECM/PCM wire harness
|
| F
|
19
|
12
|
Engine compartment wire harness
|
| G
|
9
|
10
|
Engine compartment wire harness
|
| H
|
8
|
3
|
Engine compartment wire harness
|
| I
|
20
|
5
|
Engine compartment wire harness
|
| J
|
21
|
8
|
Engine compartment wire harness
|
| K
|
23
|
17
|
Dashboard wire harness
|
| L
|
24
|
10
|
Dashboard wire harness
|
| M
|
22
|
12
|
Dashboard wire harness
|
| N
|
27
|
6
|
Dashboard wire harness
|
| O
|
26
|
12
|
Dashboard wire harness
|
| P
|
7
|
18
|
ECM/PCM wire harness
|
| Q
|
6
|
8
|
ECM/PCM wire harness
|
| R
|
10
|
6
|
ECM/PCM wire harness
|
| Power Window relay
|
12
|
4
|
|
| S
|
25
|
2
|
Dashboard wire harness
|
| Starter cut relay
|
14
|
4
|
|
| T
|
18
|
3
|
Multiplex control unit service check connector
|
| Taillight relay
|
13
|
4
|
|
| Turn signal/hazard relay
|
11
|
3
|
|
| U
|
15
|
1
|
Optional connector
|
| V
|
16
|
4
|
Optional connector
|
| W (Memory erase signal (MES)
connector)
|
17
|
2
|
ECM/PCM wire harness
|
| X
|
28
|
8
|
Dashboard wire harness B (Plugs directly into the multiplex control
unit)
|
| Y
|
29
|
13
|
Dashboard wire harness A (Plugs directly into the multiplex control
unit)
|
