Mirrors20-38

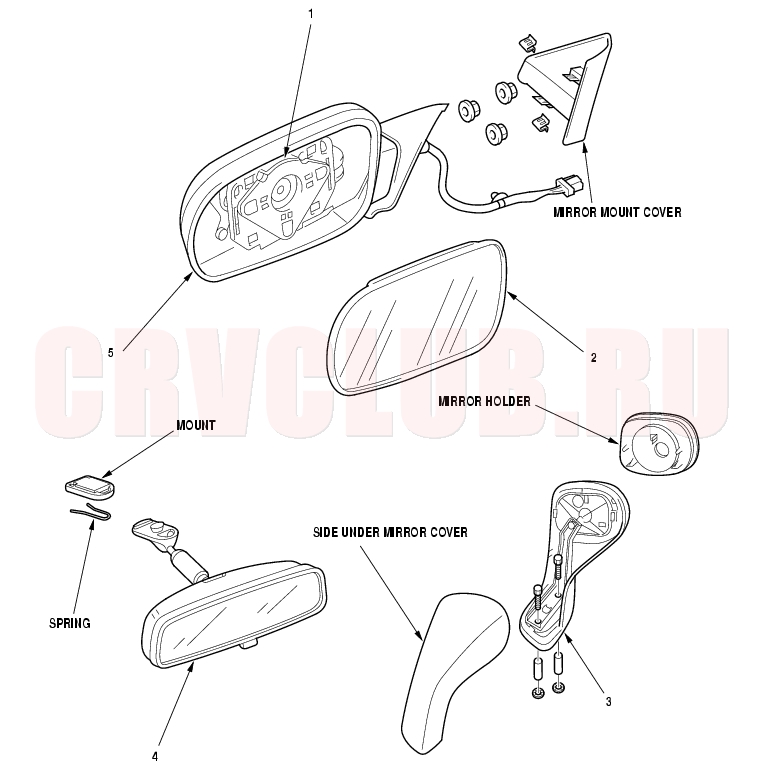

Component Location Index

1	POWER MIRROR ACTUATOR	Replacement, page 137
2	MIRROR HOLDER	Replacement, page 20-40
3	SIDE UNDER MIRROR	Replacement, page 20-40
4	REARVIEW MIRROR	Replacement, page 20-41
5	POWER MIRROR	Replacement, page 20-39

Power Mirror Replacement20-39

1. Lower the door glass fully.

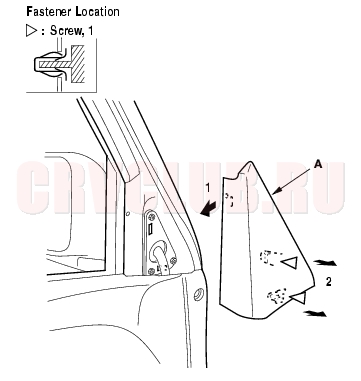

2. Carefully pry out the mirror mount cover (A) by hand in the sequence shown.






3. Remove the door panel (see page 20-9) .

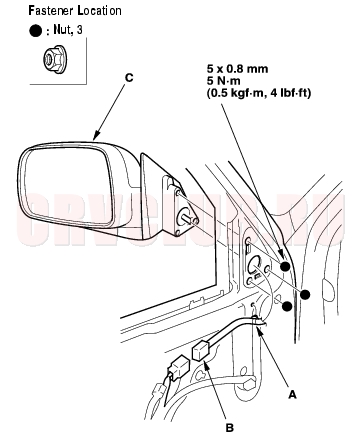

4. Remove the plastic cover as necessary, then detach the harness clip (A), and disconnect the connector (B). While holding the mirror (C), remove the nuts, then remove the mirror. Take care not to scratch the door.






5. Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.


Mirror Holder Replacement20-40

1. Carefully pull out the bottom edge of the mirror holder (A) by hand. Take care not to scratch the mirror.

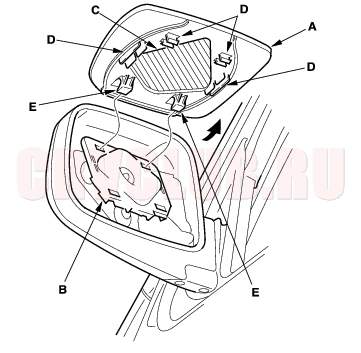

2. Separate the mirror holder from the actuator (B) by slowly pulling them apart while removing the adhesive (C), detaching the clips (D), and releasing the hooks (E). If equipped, disconnect the mirror defogger connectors from the heater pad terminals.

3. If equipped, reconnect the mirror defogger connectors.

4. Reattach the hooks of the mirror holder to the actuator, then position the mirror holder on the actuator. Carefully push on the clip portions of the mirror holder until the mirror holder locks into place.

5. Check the operation of the actuator.


Side Under Mirror Replacement20-40

For Some Models

NOTE: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

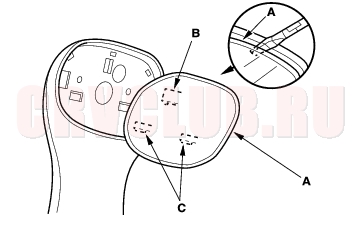

1. Using a flat-tip screwdriver, carefully pull out the upper edge of the mirror holder (A) to release the hook (B), and carefully pull out the mirror holder to release the hooks (C) by hand, then remove the mirror holder. Take care not to scratch the mirror.

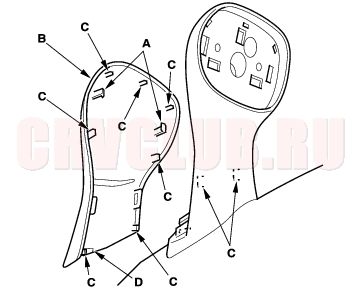

2. From the mirror holder mounting, release the hooks (A) of the side under mirror cover (B), and release the tabs (C) and hook (D), then remove the side under mirror cover.







20-41

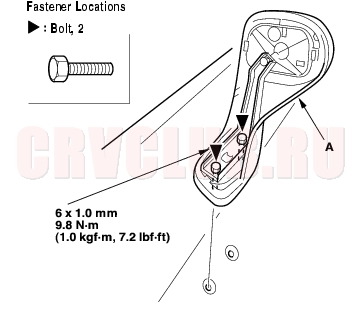

3. Remove the bolts, then remove the side under mirror base (A). Take care not to scratch the front fender.






4. Install the mirror in the reverse order of removal.


Rearview Mirror Replacement20-41

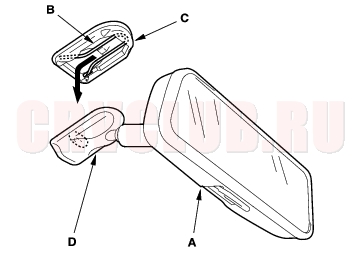

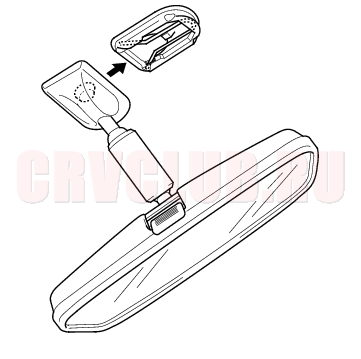

1. Slide the rearview mirror (A) down toward the bottom of the windshield, then detach it from the spring (B) in the mount (C), and remove the rearview mirror. Take care not to scratch the mirror base (D).






2. If necessary, remove the spring from the mount.

3. Fit the mirror base over the mount.







Rearview Mirror Replacement (cont'd)20-42

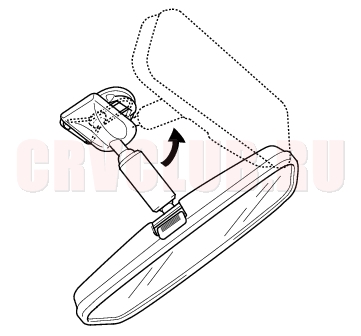

4. Secure the mirror by turning the base 90°.
