Sub-frame Replacement

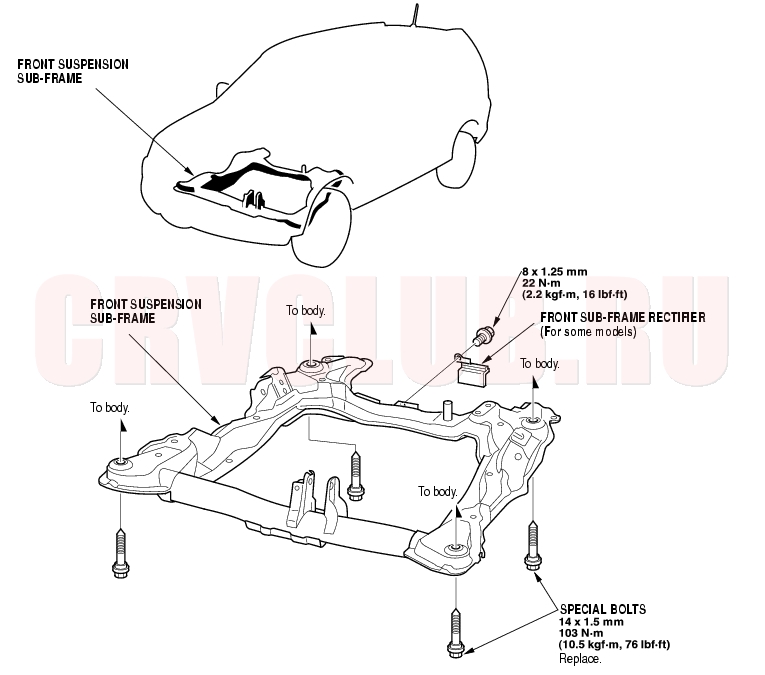

Front Sub-frame Torque
NOTE: After loosening the sub-frame mounting bolts, be sure to replace them with new ones.

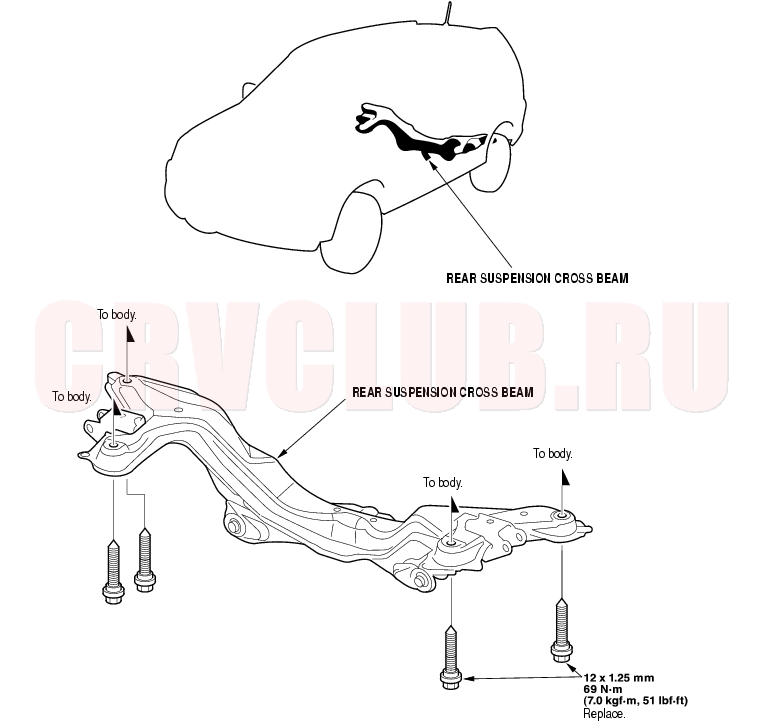

Rear Sub-frame Torque
NOTE: After loosening the sub-frame mounting bolts, be sure to replace them with new ones.

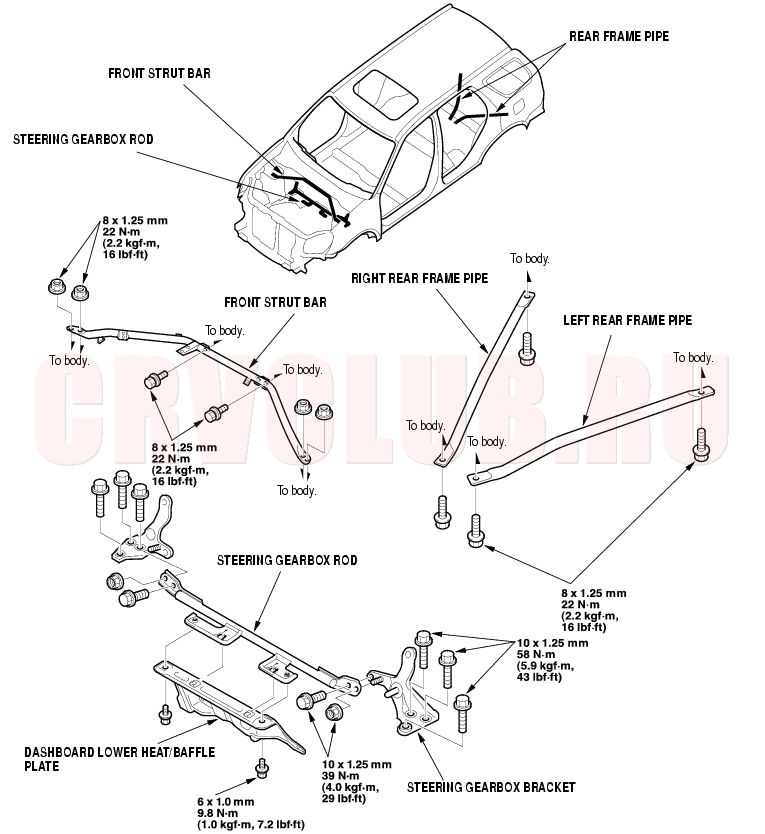

Frame Stiffener Replacement20-170
Front Strut Bar, Steering Gearbox Rod and Rear Frame Pipe Torque

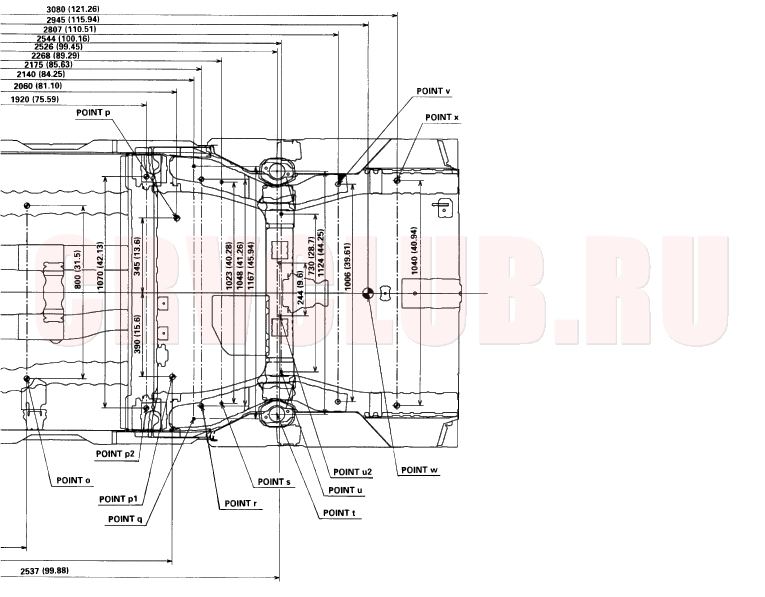

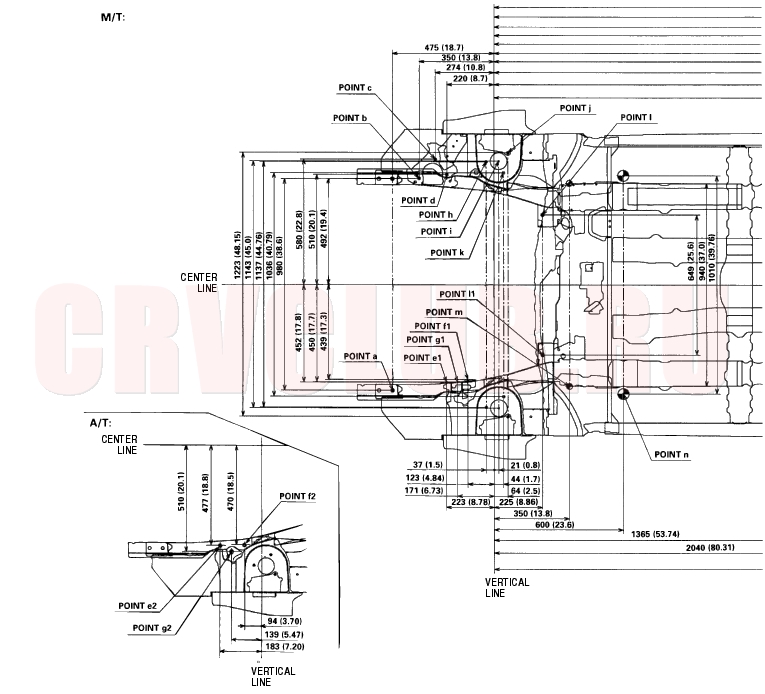

Frame Repair Chart20-171
Top View
Unit: mm (in.)
Ø: Inner diameter
|
a
|
For sub-frame Ø16 (0.63)
|
|
h
|
For damper mount Ø11.5 (0.45)
|
|
b
|
For engine mount Ø13 (0.51)
|
|
i
|
For damper center Ø78 (3.07)
|
|
c
|
For engine mount Ø13 (0.51)
|
|
j
|
For damper mount Ø11.5 (0.45
|
|
d
|
For engine mount Ø13 (0.51)
|
|
k
|
For damper mount Ø11.5 (0.45)
|
|
e1
|
For M/T transmission mount Ø13 (0.51)
|
|
l
|
For sub-frame Ø16 (0.63)
|
|
e2
|
For A/T transmission mount Ø13 (0.51)
|
|
l1
|
For sub-frame Ø16 (0.63)
|
|
f1
|
For M/T transmission mount Ø13 (0.51)
|
|
m
|
Locating hole Ø27.4 (1.08)
|
|
f2
|
For A/T transmission mount Ø13 (0.51)
|
|
n
|
Locating hole Ø50 (1.97)
|
|
g1
|
For M/T transmission mount Ø13 (0.51)
|
|
|
|
g2
|
For A/T transmission mount Ø13 (0.51)
|
|
|
o
|
Locating hole Ø25 (0.98)
|
|
t
|
Rear damper center Ø68 (2.68)
|
|
p
|
Locating hole Ø25 (0.98)
|
|
u
|
For rear cross beam Ø15 (0.59)
|
|
p1
|
Locating hole Ø25 (0.98)
|
|
u2
|
Locating hole Right side: Ø13 (0.51)/Left side: Ø15 (0.59)
|
|
p2
|
Locating hole Ø23 (0.91)
|
|
v
|
For rear cross beam Ø15 (0.59)
|
|
q
|
For trailing arm Ø14 (0.55)
|
|
w
|
Locating hole Ø50 (1.97)
|
|
r
|
Locating hole Ø20 (0.79)
|
|
x
|
Locating hole Ø25 (0.98)
|
|
s
|
For trailing arm Ø14 (0.55)
|
|
|

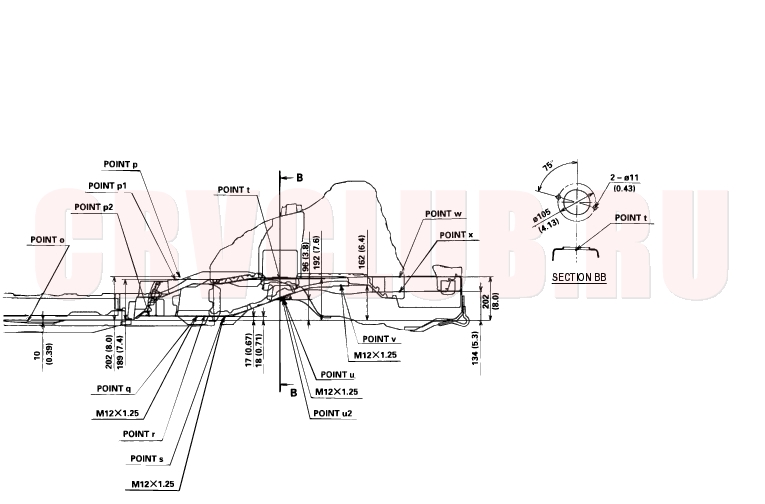

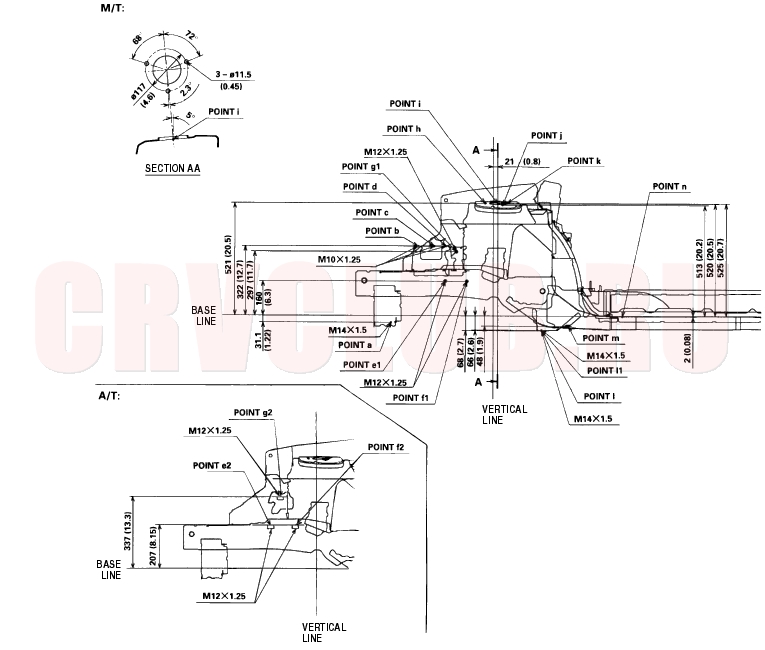

Frame Repair Chart (cont'd)20-173
Side View
Unit: mm (in.)
Ø: Inner diameter
|
a
|
For sub-frame Ø16 (0.63)
|
|
h
|
For damper mount Ø11.5 (0.45)
|
|
b
|
For engine mount Ø13 (0.51)
|
|
i
|
For damper center Ø78 (3.07)
|
|
c
|
For engine mount Ø13 (0.51)
|
|
j
|
For damper mount Ø11.5 (0.45
|
|
d
|
For engine mount Ø13 (0.51)
|
|
k
|
For damper mount Ø11.5 (0.45)
|
|
e1
|
For M/T transmission mount Ø13 (0.51)
|
|
l
|
For sub-frame Ø16 (0.63)
|
|
e2
|
For A/T transmission mount Ø13 (0.51)
|
|
l1
|
For sub-frame Ø16 (0.63)
|
|
f1
|
For M/T transmission mount Ø13 (0.51)
|
|
m
|
Locating hole Ø27.4 (1.08)
|
|
f2
|
For A/T transmission mount Ø13 (0.51)
|
|
n
|
Locating hole Ø50 (1.97)
|
|
g1
|
For M/T transmission mount Ø13 (0.51)
|
|
|
|
g2
|
For A/T transmission mount Ø13 (0.51)
|
|
|
o
|
Locating hole Ø25 (0.98)
|
|
t
|
Rear damper center Ø68 (2.68)
|
|
p
|
Locating hole Ø25 (0.98)
|
|
u
|
For rear cross beam Ø15 (0.59)
|
|
p1
|
Locating hole Ø25 (0.98)
|
|
u2
|
Locating hole Right side: Ø13 (0.51)/Left side: Ø15 (0.59)
|
|
p2
|
Locating hole Ø23 (0.91)
|
|
v
|
For rear cross beam Ø15 (0.59)
|
|
q
|
For trailing arm Ø14 (0.55)
|
|
w
|
Locating hole Ø50 (1.97)
|
|
r
|
Locating hole Ø20 (0.79)
|
|
x
|
Locating hole Ø25 (0.98)
|
|
s
|
For trailing arm Ø14 (0.55)
|
|
|
