Body20-1 Fenderwell20-155

Fenderwell20-155

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

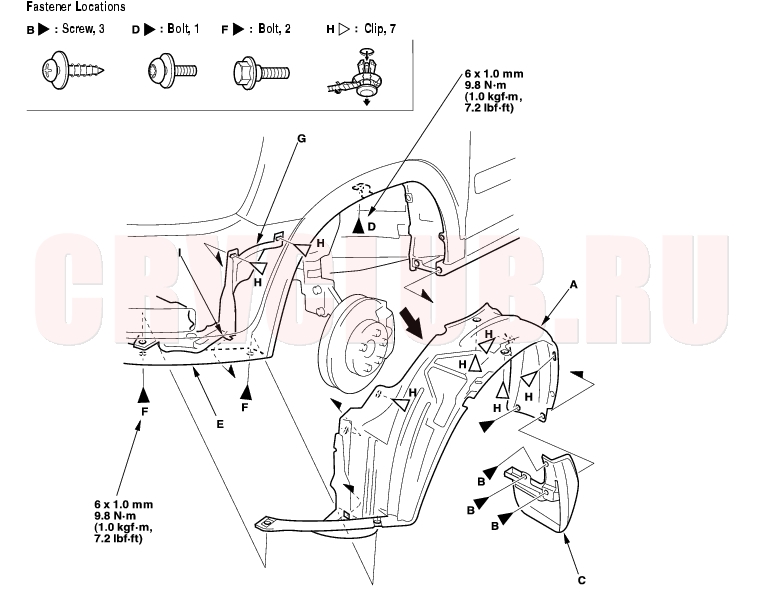

1. Remove the front inner fender (A).


   On the back of the wheel arch, remove the screws (B),then remove the front splash guard (C).

   With a Torx T30 bit, remove the bolt (D) securing the front wheel arch protector.

   From under the front bumper (E), remove the bolt (F) securing the front bumper, splash shield (G), and front inner fender.

   From the wheel arch, remove the clips (H) securing the front inner fender (and splash shield) on the body.

   Release the hook (I) of the splash shield, then remove the front inner fender.






2. Install the inner fender in the reverse order of removal, and replace any damaged clips.


Front Fender Fairing Replacement20-156

1. Remove the front inner fender as necessary (see page 20-155) .

2. For the left front fender fairing removal, remove the washer reservoir (see page 22A-224) .

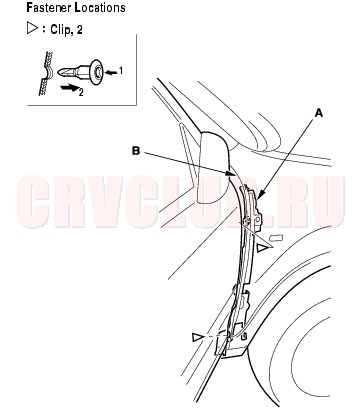

3. Open the front door. From outside the door, remove the upper clip, and from inside the door, remove the lower clip securing the front fender fairing (A) and front fender (B).

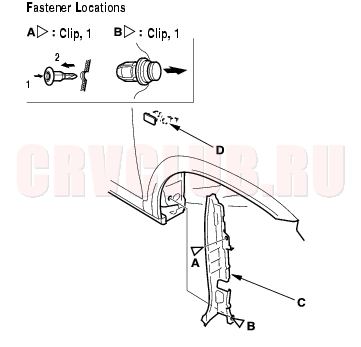

4. From the wheel arch, remove the clip (A), and release the clip (B), then remove the front fender fairing (C).If the fairing is caught by the side turn signal light harness, disconnect the connector (D).






5. Install the fender fairing in the reverse order of removal, and note these items:


   Replace any damaged clips.

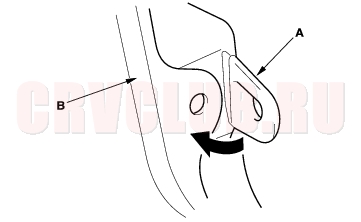

   Before installing the clips of the door upper and lower portions, install the front fender fairing (A) to the front fender (B) properly as shown.






Fuel Pipe Protector Replacement20-157

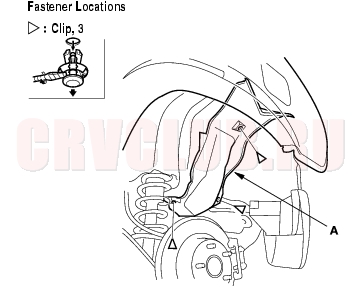

1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body.






2. Install the protector in the reverse order of removal, and replace any damaged clips.


Rear Air Outlet Replacement20-157

1. Remove the rear bumper (see page 20-131) .

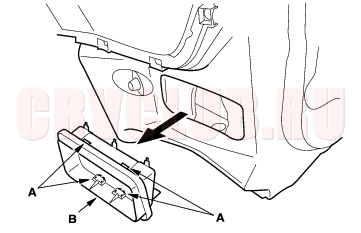

2. Detach the hooks (A), then remove the rear air outlet (B). Take care not to scratch the body.






3. Install the air outlet by pushing on the hook portions until the hooks snap into place.
