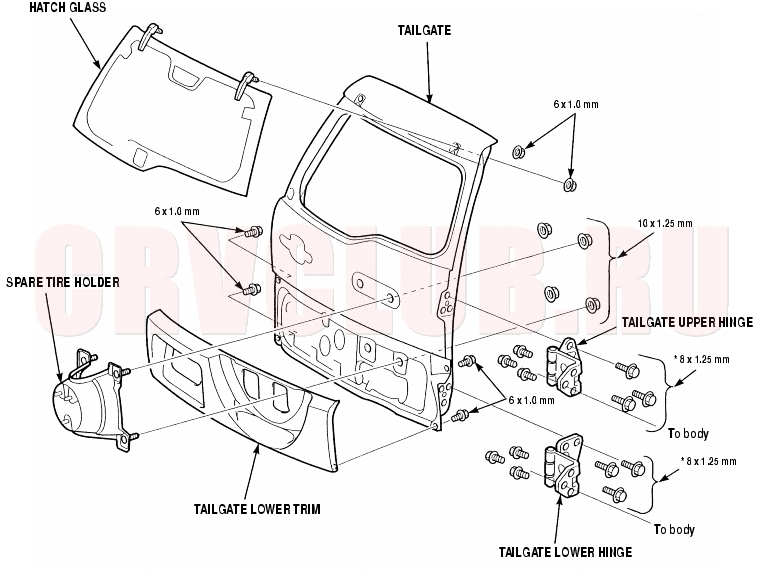

Tailgate Compartment Parts Removal / Installation1-8

Mounting bolts/nuts torque:

6 x 1.0mm: 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

* 8 x 1.25 mm: 29 N·m (3.0 kgf·m, 22 lbf·ft)

10 x 1.25 mm: 28 N·m, 28 lbf·ft)
