General Information1-1 Body Specifications / Wheel Alignment 1-6

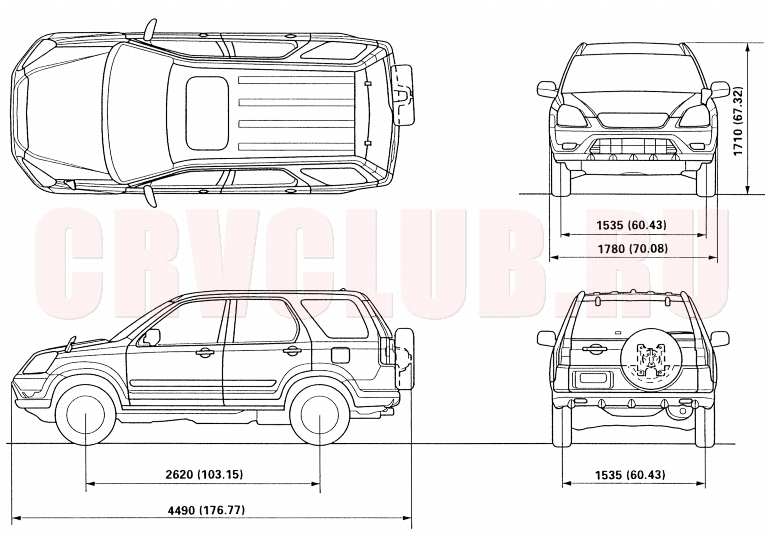

Body Specifications / Wheel Alignment 1-6

Unit: mm (in.)

Front Wheel Alignment
Camber	0°00' ± 1°
Caster	2°10' ± 1°
Total toe	0 ± 3 (0 ± 0.12)
Wheel turning angle	in	37°00' ± 2°
	out	31°30' (Reference)

Rear Wheel Alignment
Camber	-1°00' ± 1° ± 45'
Total toe	IN (2 (+2/-1)) (0.08 (+0.08/-0.04))
