1. Remove the inboard joint (see page 16-5) .

2. Remove the dynamic damper bands. Be careful not to damage the dynamic damper (see page 16-5) .


   If the boot band is a welded type, cut the boot band.

   If the boot band is a double loop type, lift up the band bend, and push it into the clip.

   If the boot band is a low profile type, pinch the boot band using the commercially available boot band pincers.

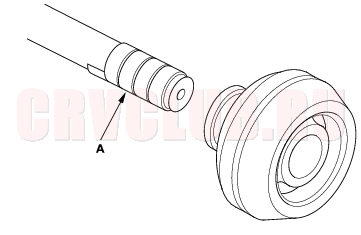

3. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damage to the dynamic damper.






4. Remove the dynamic damper. Be careful not to damage the dynamic damper.

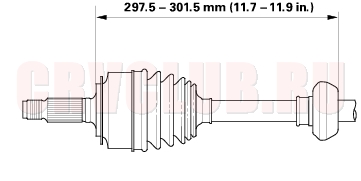

5. Adjust the length of the dynamic damper to the figure below.






6. Install the dynamic damper band (see step 9 on page 16-11 ).

7. Install the inboard joint (see step 1 on page 16-10 ).
