Body Electrical22A-1 Relay and Control Unit Locations22A-7

Relay and Control Unit Locations22A-7

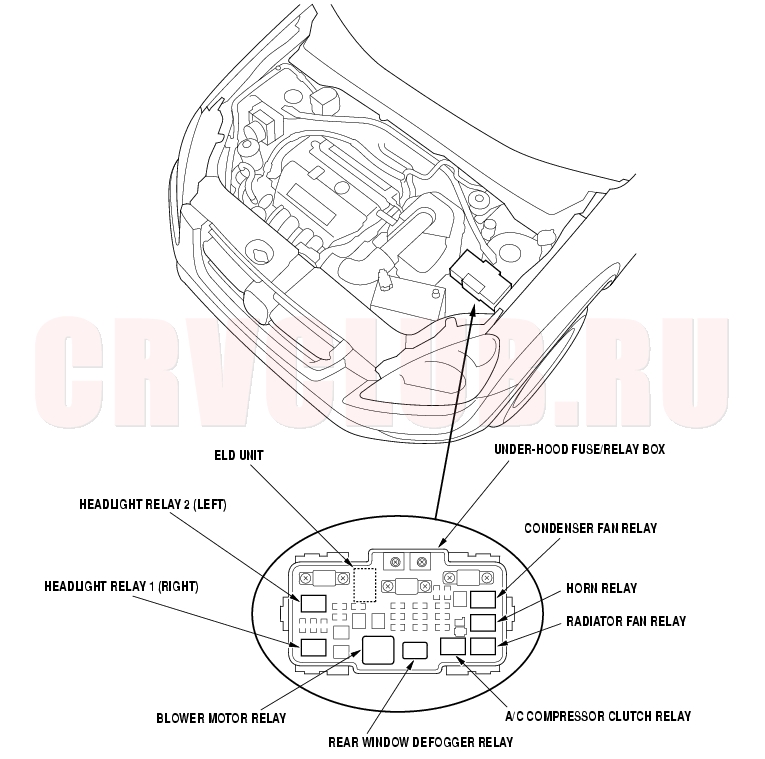

Engine Compartment

Note: LHD type is shown, RHD type is similar.

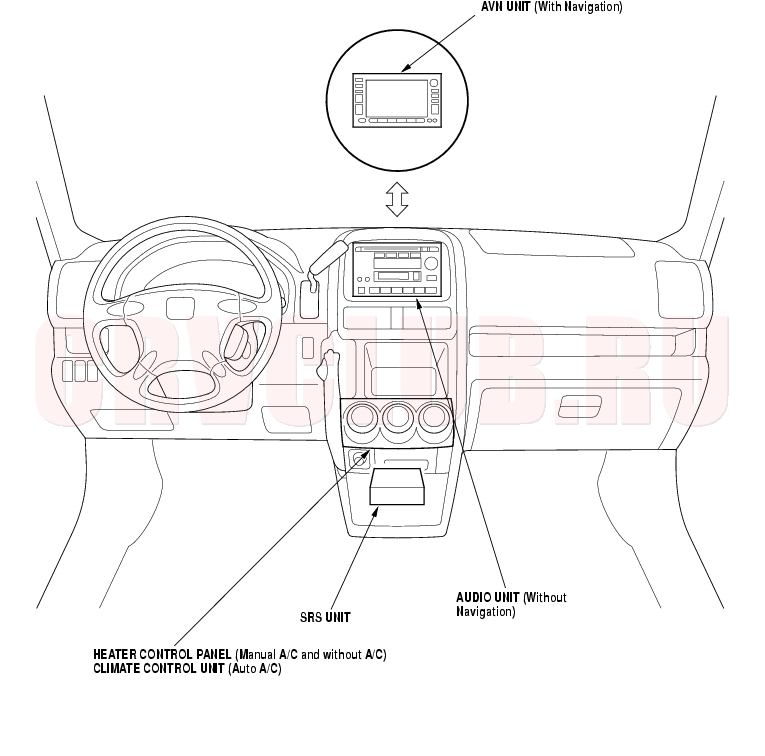

Dashboard22A-8

Note: LHD type is shown, RHD type is similar.

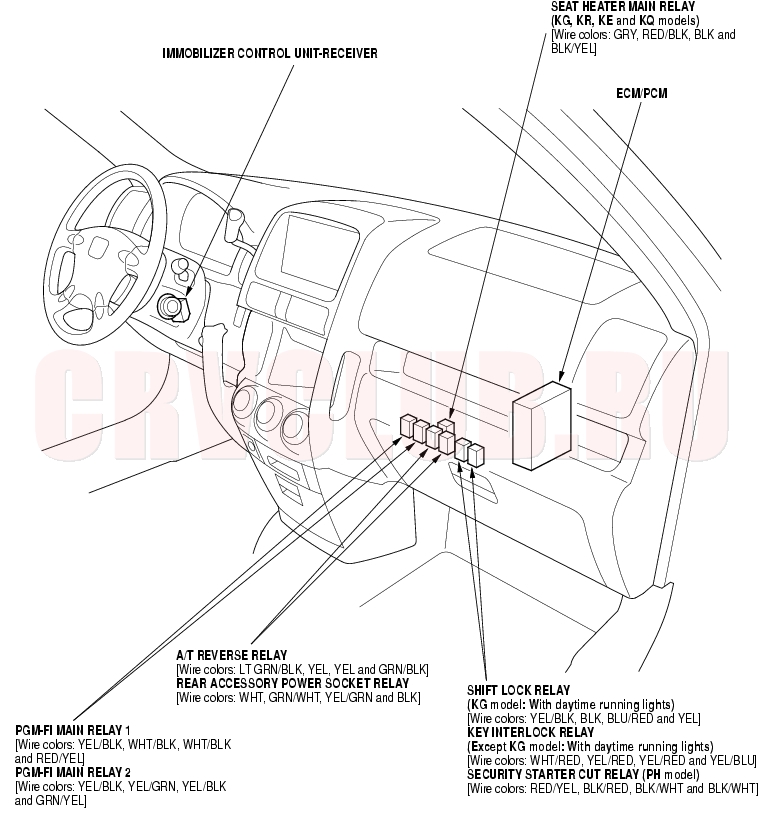

22A-9

Note: LHD type is shown, RHD type is similar.

Dashboard (cont'd)22A-10

Note: LHD type is shown, RHD type is similar.

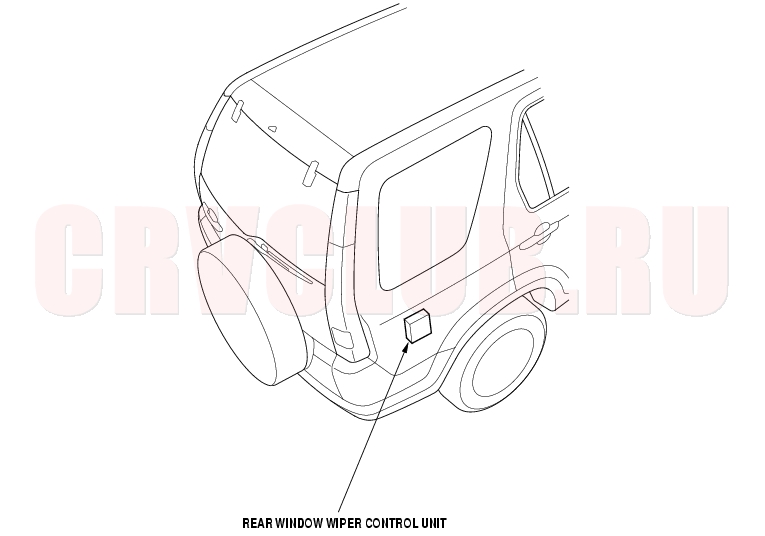

Rear22A-11

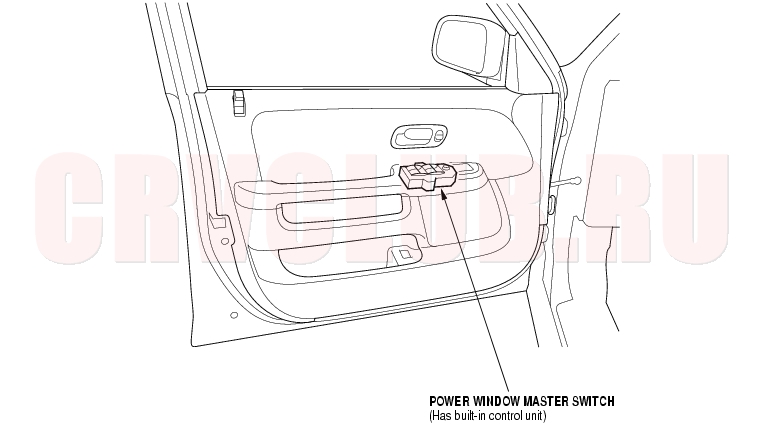

Door22A-12

Note: LHD type is shown, RHD type is similar.

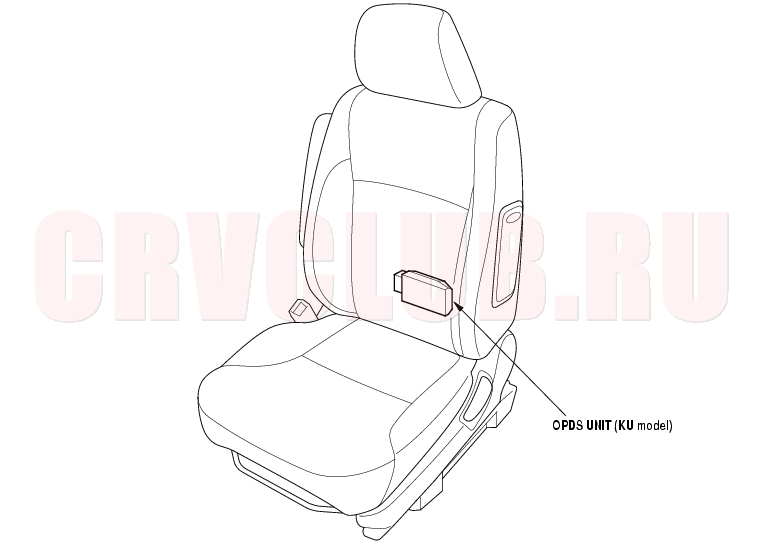

Seat22A-13

Body Electrical22A-1 Relay and Control Unit Locations22A-7
