Propeller Shaft Installation16-34

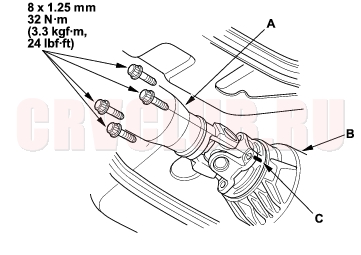

1. Install the propeller shaft (A) onto the rear differential (B) by aligning the reference mark (C).






2. Install the center support bearing mounting bolt. Make sure you use a new bolt.

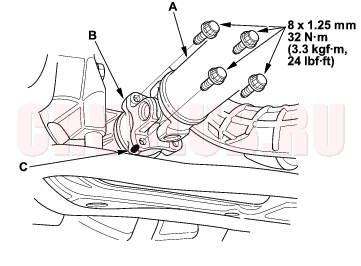

3. Install the propeller shaft (A) onto the transfer (B) by aligning the reference mark (C).

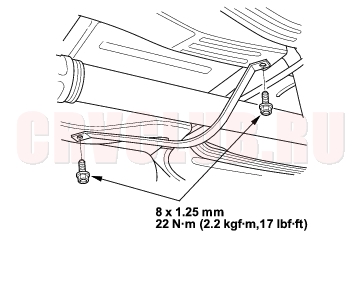

4. Install the No. 2 propeller shaft protector.
