Rear Driveshafts Installation16-31

NOTE: Before starting installation, make sure the wating surfaces of the joint and the spline section are free from dirt or dust.

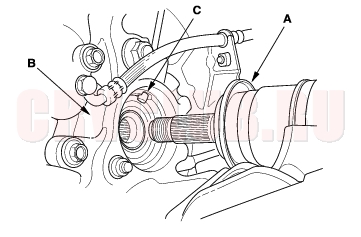

1. Install the outboard joint (A) into the rear hub (B).


   NOTE: Be careful not to damage the ABS wheel sensor (C).






2. Install the rear driveshafts into the rear differential assembly (see step 3 on page 15-25 ).

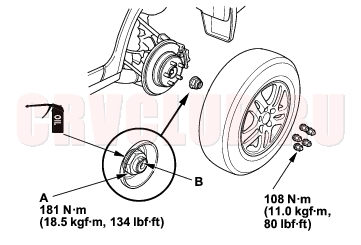

3. Apply a small amount of engine oil to the seating surface of the new spindle nut (A).






4. Install a new spindle nut, then torque the nut. After tightening, use a drift to stake the spindle nut shoulder against the driveshaft (B).

5. Clean the mating surfaces of the brake disc and the wheel, then install the rear wheel and torque the wheel nuts.
