Forced Starting of Display22B-25

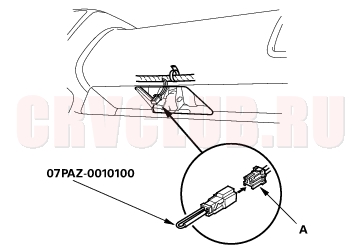

  1. Locate the navigation service check connector (A) upper of the data link connector.


  2. Connect the SCS short connector to the navigation service check connector (A).
  3. Turn the ignition switch ON (II).

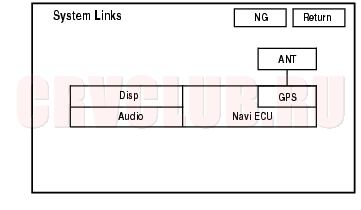

  4. Check that the diagnosis menu for the picture diagnosis start up and then changes to the system link screen.
