Body Dimensional Drawings4-1 Upper Body Measuring Dimensions 4-2

Upper Body Measuring Dimensions 4-2

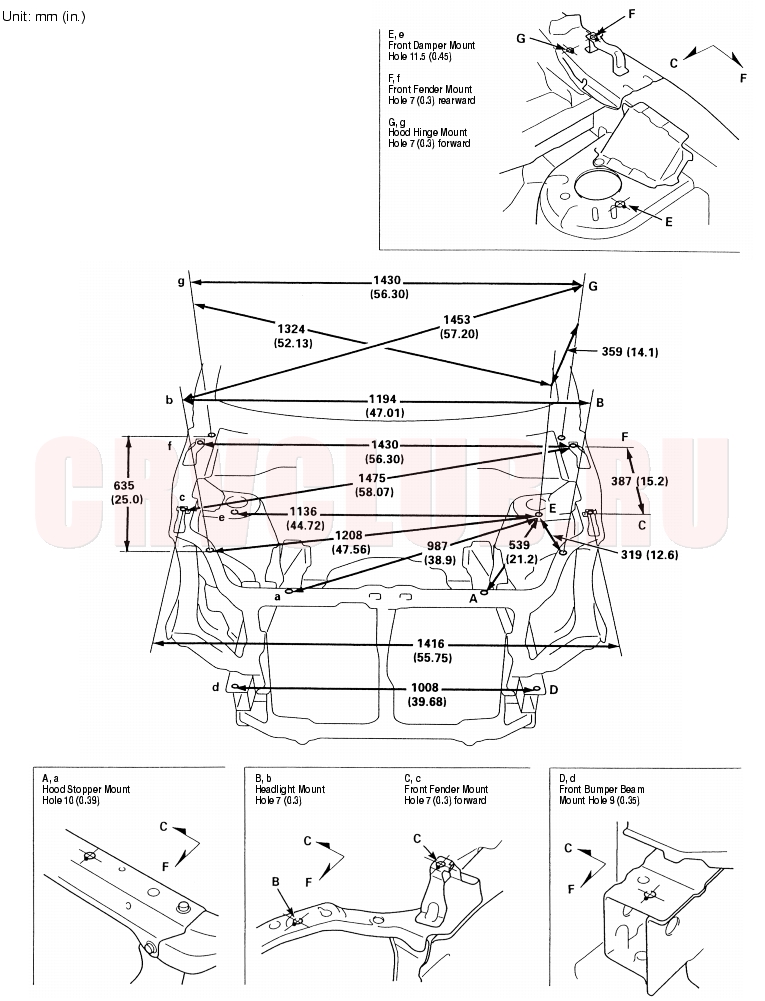

Engine Compartment

4-3

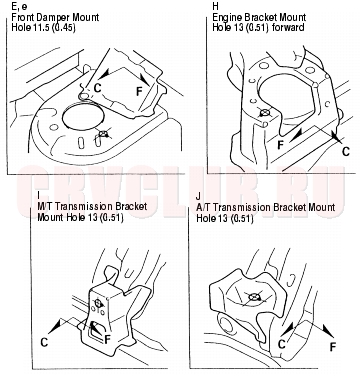

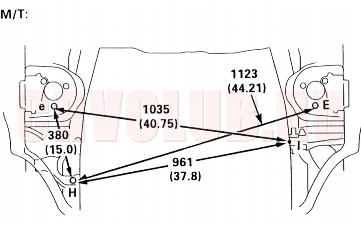

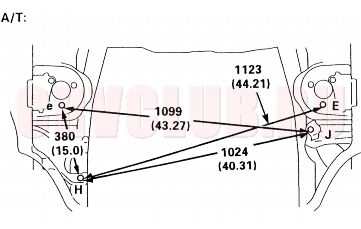

Engine / Transmission Mount Positions

Unit: mm (in.)

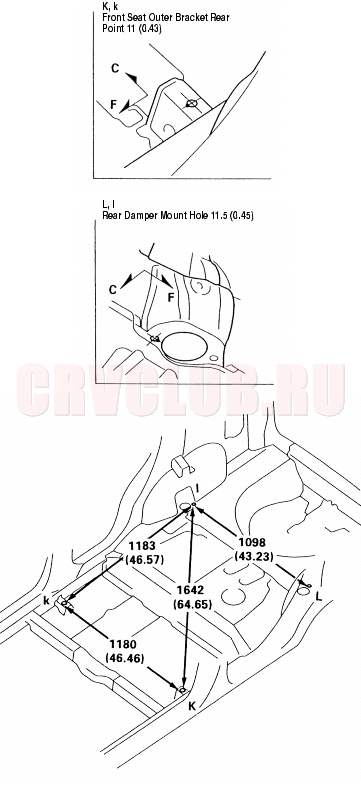

Passenger's Compartment4-3

Unit: mm (in.)

Upper Body Measuring Dimensions (cont'd)4-4

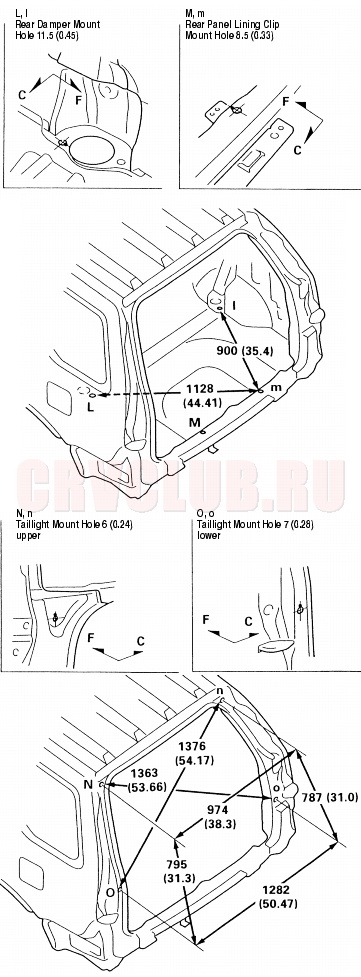

Rear Panel / Rear Pillar Gutter Positions

Unit: mm (in.)

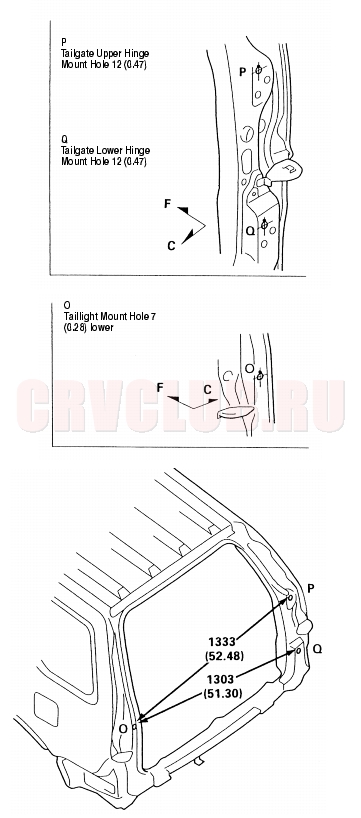

Tailgate Hinge Mount Position4-4

Unit: mm (in.)

4-5

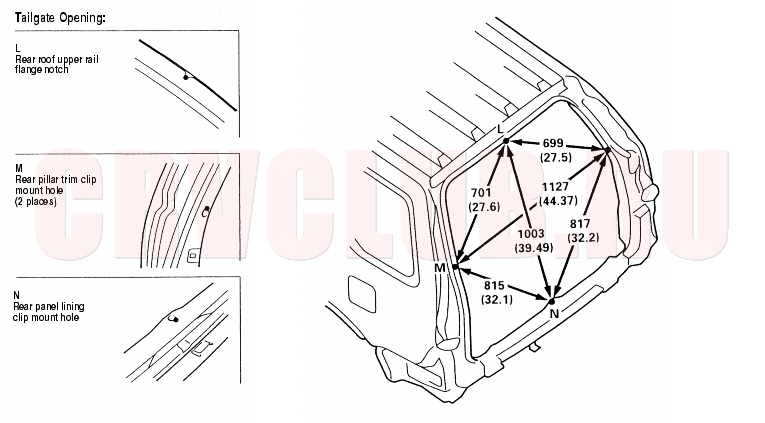

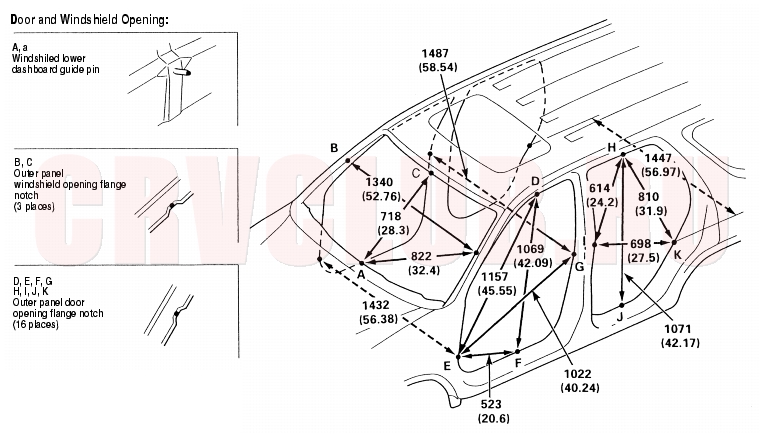

Opening Repair Chart

Unit: mm (in.)
