General Information1-1 Color Chart Paint Specifications 1-12

Color Chart Paint Specifications 1-12

P.: Pearl Paint / M.: Metallic Paint

		NH-578 Taffeta white	NH-623M Satin Silver M.	NH-624P Premium White P.	B-92P Nighthawk Black P.	B-96P Eternal Blue P.	G-95P Clover Green P.	YR-535M Mojave Mist M.	R-517P Chianti Red P.	B-508M Ziricon Blue M.	B-94 Midnight Blue	R-81 Mirano Red	B-512M Magnetic Blue M.	R-507P Fire Pepper P.	YR-525M Titanium M.	RP-31M Signet Silver M.
KE	SE/SE-E	O	O		O	O	O	O	O		O	O	O
KE	LS	O	O		O	O	O	O	O		O	O	O
	ES	O	O		O	O	O	O	O		O	O	O
KS	ES	O	O		O	O	O	O	O		O	O	O
KH	BASE	O	O	O		O	O	O	O
KK	LX/EX		O	O			O	O	O	O
	OP (LEATHER)		O	O			O	O	O	O
KM	RVSI		O	O	O		O	O		O
KN	RVI/RVSI		O	O	O		O	O	O	O
KQ	RVI/RVSI	O	O		O	O	O	O	O	O
KT	BASE		O	O	O		O	O	O	O
KU	RVI/ RVI-H	O	O			O	O	O	O
	RVSI/ RVSI-H	O	O	O	O		O	O		O
KW	BASE	O	O		O	O	O	O	O	O
KY	RVI/RVSI		O	O	O		O	O	O	O
KR	LS/ES	O	O		O	O	O	O	O		O	O	O
KP	RVI/RVSI		O	O	O		O	O	O	O
KZ	RVI/RVSI	O	O		O	O				O				O	O	O

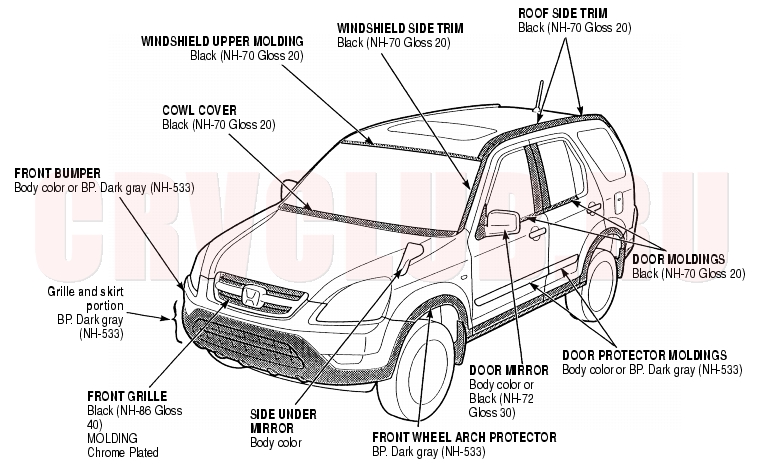

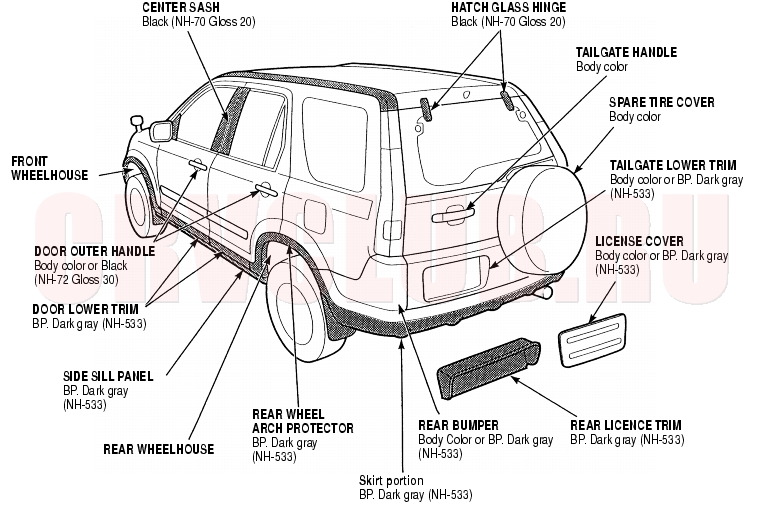

Note: Apply NH-86 black (Gloss 40) to the visible surfaces of the rear tie down hook, front bumper beam, front and rear wheelhouse after repairing and painting (except vehicles painted with B-92P, G95P and B-94)

1-13
